SUBMASTER

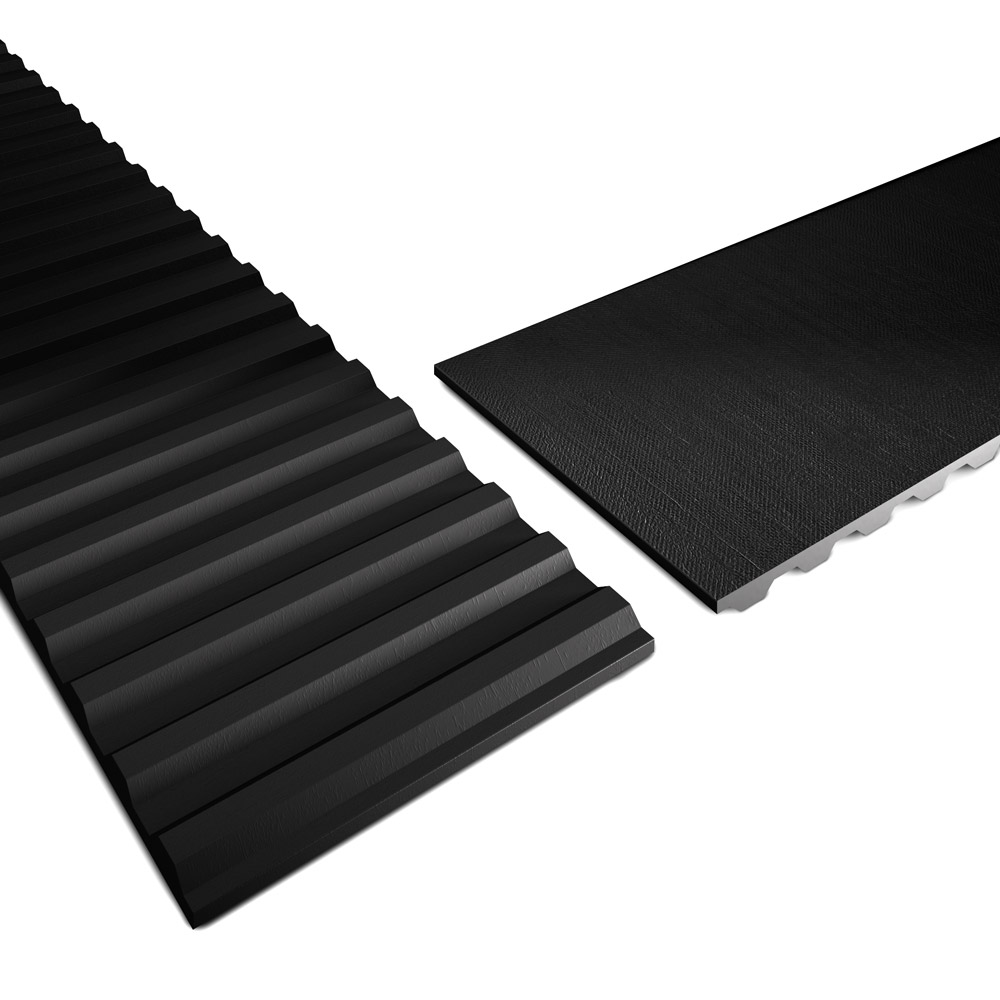

Vibration-damping elastomer in non-porous styrene rubber (SBR), black in color, to be inserted at the foot of the non-load-bearing walls, having a thickness of 6 mm. The imprint with grooves in rows on one side allows a support of 40% of the contact surface with the slab by increasing the separation strip power.

Supplied in strips in dimensions of 0.14 m (width) x 1.20 m (length) with a total surface area of 0.17 m2/strip.

The strips should be juxtaposed to each other without being fixed to the floor with any type of glue. The groove must be facing down and the smooth part in view at the foot of the masonry.

DATI TECNICI DEL PRODOTTO

Features   Standards Unit of measurement Tolerances Values
Color black
Hardness    UNI 4916 Shore A ± 5 70
Specific weight   UNI 7092 g/cm3 ± 0,03 1,56
Breaking load   UNI 6065 M Pa Minimum 3
Breaking length   UNI 6065 % Minimum 250
Resistance to laceration   UNI 4914 C N/mm Minimum 15
Resistance to abrasion   UNI 9185 mm3 Maximum -
Ageing (air)
∆ hardness
∆ breaking load
∆ breaking length
∆ volume / volume
UNI ISO 188



Shore A
%
%
Shore A
Maximum
Maximum
Maximum
Maximum
+8
-25
-40
-
Ageing (water)
∆ hardness
∆ breaking load
∆ breaking length
∆ volume
UNI 8313/2°



Shore A
%
%
Shore A
Maximum
Maximum
Maximum
Maximum
-9
-
-
+9
Temperatures max and
min of exertion









°C
°C
°C
static
80   -20
no
+80
dynamic
no
-
+9
M Pa = 10,2 Kg/cm2 1 N/mm = 1,02 Kg/cm





Code Format Dimensions Thickness
L030051206 strips 0,14 m x 1,20 m 6 mm
